Arctic Spas Manuals

CLASSIC SERIES

42. Jets

Classic Series – Jets



Three Inch (3”) Jets

The Turbo Single jets give a wide circular massage. The 3-inch jets are designed for a thorough massage of the muscles in your upper back, shoulders and neck.   These jets are adjustable by turning the face of the jet clockwise for a stronger flow and counter-clockwise for a softer flow and eventually off. The Jet can also be locked in the fully ON (open) position by turning the face of the jet clockwise until it does not go any further. Then rotate again to allow the jet to override the lock stop.



Five Inch (5”) Jets

The five-inch Hydro-massage jets give a wide circular massage. These jets are adjustable by turning the face of the jet clockwise for a stronger flow and counter-clockwise for a softer flow and eventually off. The Jet can also be locked in the fully ON (open) position by turning the face of the jet clockwise until it does not go any further. Then rotate again to allow the jet to override the lock stop.



Monsoon Jet

The Monsoon Jet is a large hydro-massage jet designed to maximize massaging action on a specific area of the body. It is located in the lower part of the spa to allow easy access for massaging feet, legs, hips and lower back. The intensity of the Monsoon Jet can be altered using the Diverter (the location varies depending on spa model). Consult your local dealer regarding which diverter lever or just jump in and experiment for yourself.

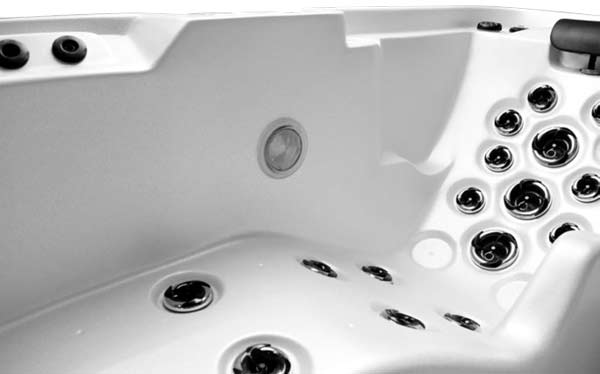

Jets installed in the classic series hot tub
Three Inch jet, Five Inch jet and a Monsoon jet
